1500V系列大功率双向DCDC
1500V series high-power bidirectional dcdc
产品特点Product characteristics
1、全数字化三电平设计，满载效率可高达 95%。
full digital three-level design, full load efficiency up to 95%.
2、多机并联使用，满足大功率和大电流需求。
multi-machine parallel use, to meet the needs of high power and large current.
应用场景Application scenario
1、光储充、高电压平台储能应用。
optical storage and charge, high voltage platform energy storage applications.
2、电力支撑、直流UPS。
power support, DC UPS.
3、地铁、高铁等电力机车能量回收系统。
subway, high-speed rail and other electric locomotive energy recovery system.

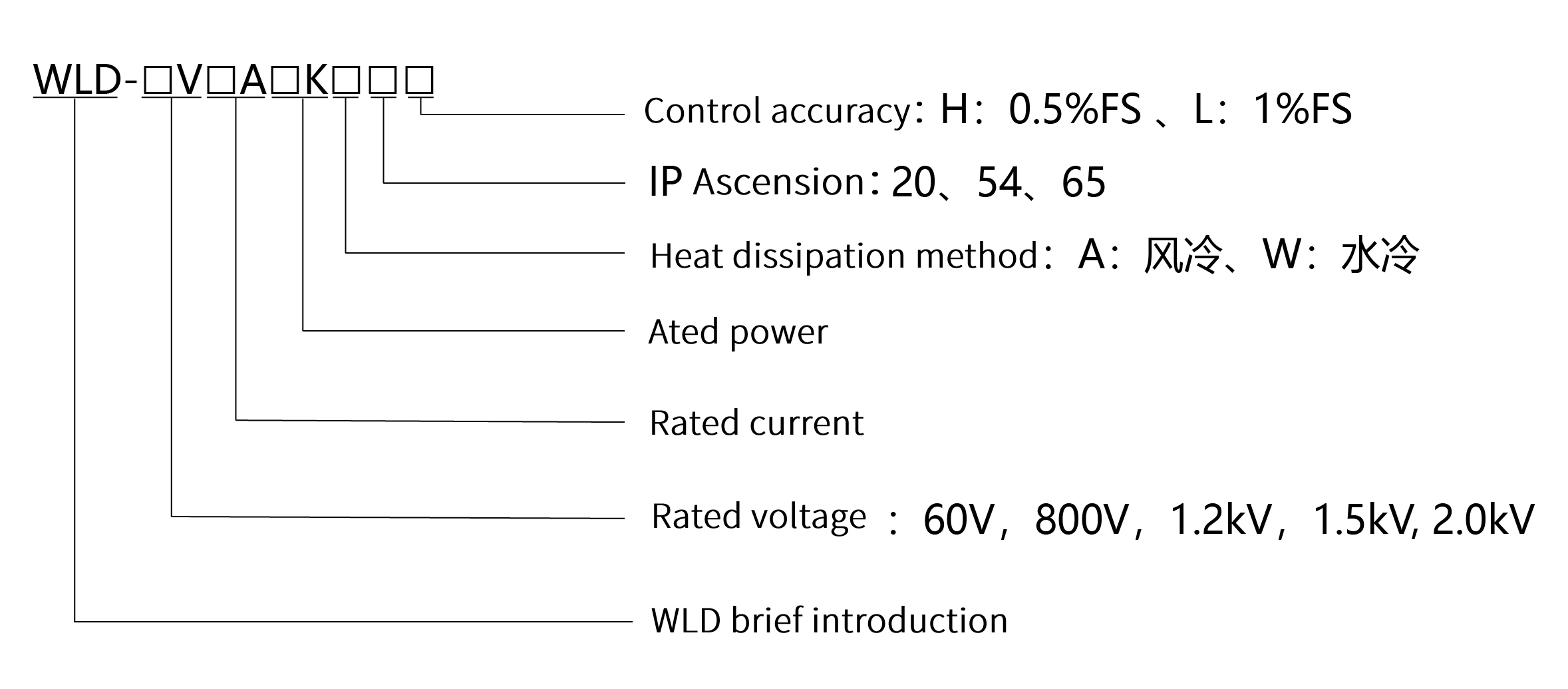

型号说明Type description
产品规格型号参数表Product specification model parameter table
符号注释：●风冷 ●水冷 ★ ±1%FS ★±0.5%FS ■≤5ms ■≤100ms ◆-20℃ ~ +45℃，45℃以上需降额使用 ◆进水口温度<30℃，出水口温度<80℃
Symbolic comment：●Air cooling ●water-cooling ★ ±1%FS ★±0.5%FS ■≤5ms ■≤100ms ◆-20℃ ~ +45℃，When the temperature is higher than 45 ° C, the derated usage is required ◆Inlet temperature <30℃, outlet temperature <80℃
|
产品编号
|
型 号
|
电压
Vdc
|
电流
A
|
最大功率
KW
|
RS485
通道
|
CAN
通道
|
精度
FS
|
散热方式
|
防护等级IP
|
尺寸(D*W*H) mm
|
重量
Kg
|
|
401
|
WLD-1.5kV100A60KA20H
|
0~1500
|
0~100
|
60
|
2
|
2
|
0.5%
|
●
|
20
|
551.5*445*176
|
37
|
|
402
|
WLD-1.5kV150A100KA20H
|
0~150
|
100
|
2
|
2
|
0.5%
|
●
|
20
|
543*154*600
|
55
|
|
|
其他型号
|
|
|
可根据客户需求定制
|
|
|
备注：尺寸不包含水嘴、接线端子
|
