升降压系列大功率双向DCDC

Boost Buck Series High Power Bidirectional DC/DC

产品特点Product characteristics

1、升降压型双向变换。

Boost buck bidirectional conversion.

2、4管拓扑结构，两端均可短路保护。

Four switch topology with short circuit protection at both terminals.

3、输出电压可以比输入电压低，也可以比输入电压高。

The output voltage can be either lower or higher than the input voltage.

应用场景Application scenario

1、电池储能，匹配电池和PCS线电压交叉。

Battery energy storage, matching the voltage crossover between the battery and the PCS.
2、直流微网中匹配各种电压交叉。

Matching various voltage crossovers in DC microgrids.
3、光储充、交直流混合微网应用。

Applications in PV storage charging systems and AC/DC hybrid microgrids.

型号说明Type description

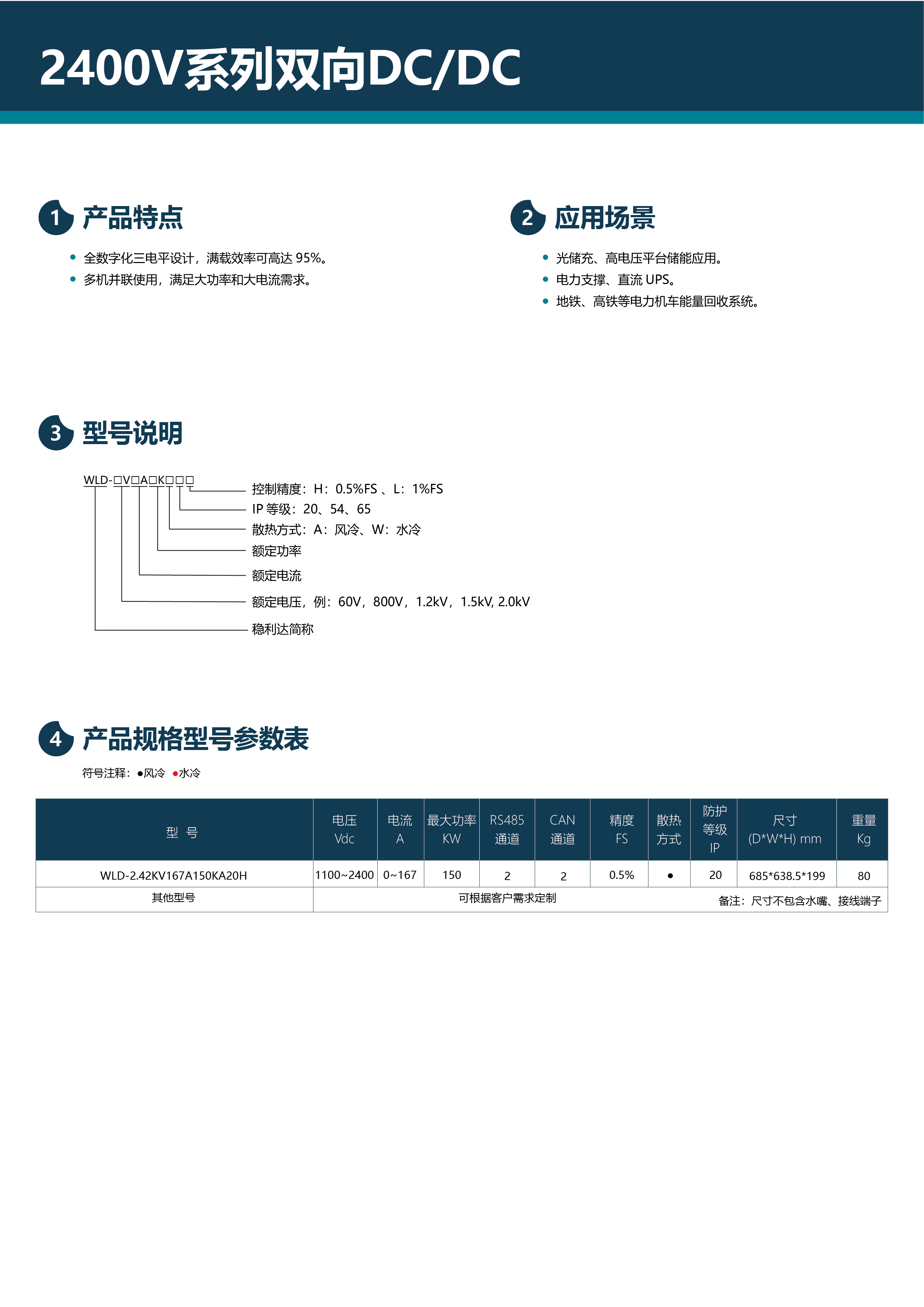

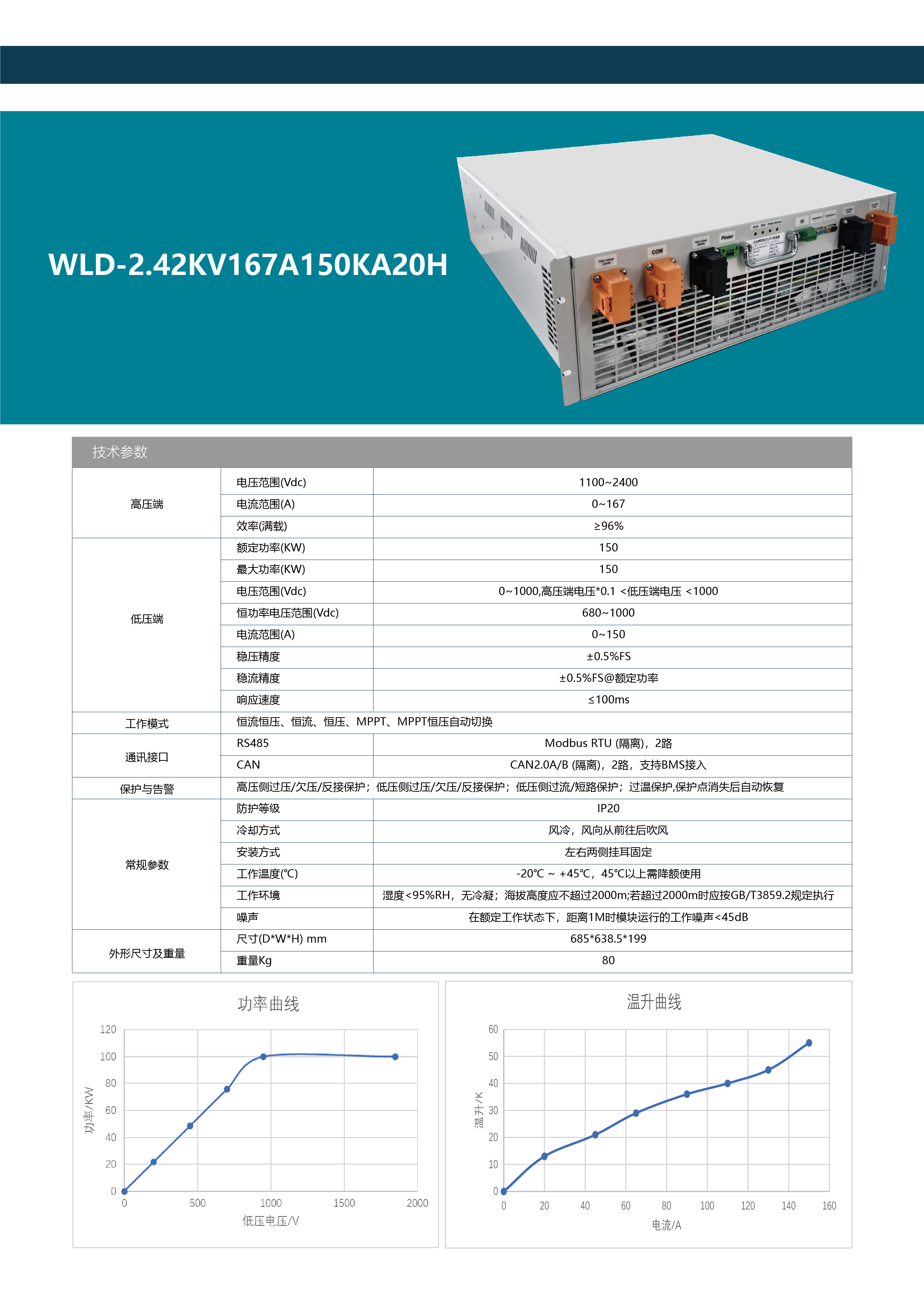

产品规格型号参数表Product specification model parameter table

符号注释：●风冷  ●水冷   ★ ±1%FS   ★±0.5%FS     ■≤5ms    ■≤100ms     ◆-20℃ ~ +45℃，45℃以上需降额使用      ◆进水口温度<30℃，出水口温度<80℃

Symbolic comment：●Air cooling  ●water-cooling   ★ ±1%FS   ★±0.5%FS     ■≤5ms    ■≤100ms     ◆-20℃ ~ +45℃，When the temperature is higher than 45 ° C, the derated usage is required      ◆Inlet temperature <30℃, outlet temperature <80℃
